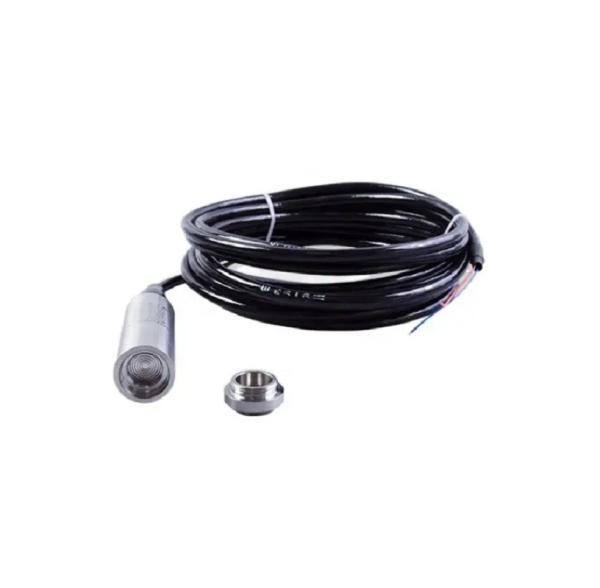

0-200m 304 0r 316L Stainless Steel H20 Liquid Level Pressure Sensor

Price : Discuss

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 500pcs/month

Delivery Time : 5-8 work days

Packaging Details : carton packing 25*15*10cm

customized support : OEM, ODM, OBM

brand name : XINYIYB

material : SS

permitted Overload : permitted Overload Up to 1.5 times the rated range

Long term stability : ± 0.2% F.S/year (>20mH2O) ± 20mm (≤ 20mH2O)

warranty : 1 Yesr

working temperature : -20℃~80℃

place of origin : Shanxi, China

Storage temperature : -40℃~120℃

Power supply : 15-30VDC (intrinsic safety type powered by safety barrier)

output signal : 4~20mA 0~10/20mA 0/1~5VDC

Shell material : Aluminum cast, stainless steel 1Cr18Ni9Ti

Diaphragm material : 316L stainless steel

O-ring seal : O-ring seal

Cable : Polyethylene ventilation cable

Contact Now

●Low-Cost LCD Display Level Transmitter | 4-20mA Input | YWKT-1B Model, OEM Available

Overview

YWKT-1B input level transmitter uses high-performance diffusion of silicon pressure sensor as a measurement element, it measures the hydrostatic pressure which is proportional to the depth of the liquid and Convert to standard current or voltage by signal processing circuit.

This transmitter is suitable for liquid level measurement in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage systems and other industries.

●Feature

A variety of range options
Real-time liquid level display
Convenient to debug zero and full-scale
High-precision, high stability, high reliability

●Outline structure:(Unit: mm)

0-200m 304 0r 316L Stainless Steel H20 Liquid Level Pressure Sensor

Pressure parameter
Range	0m H2O～1m H2O…200 mH2O
Overload	2 times FS,5 times FS when less than 5 mmH₂O
Electrical parameter
Output type	12～30V DC
Power supply	4mA～20mA DC(2 wire)
Load resistance	≤(U-12)/0.02Ω(2 wire)
Structural parameter
Housing	SS
Sensor	SS 316L
Sealed-ring	Viton
Cable	∅7.5mm Polyethylene special cable
Protection class	IP65(sensor)			IP68(housing)
Ambient parameter
Media applicability	Fluid which has no corrosion to Stainless steel 316L and viton
Compensation temperature	-10℃～80℃
medium temperature	-30℃～85℃
Storage temperature	-40℃～125℃
Performance index
Accuracy	±0.1％FS(Mix.)	±0.25％FS(Typ.)			±0.5％FS(Max.)
Zero temperature coefficient	±0.05％FS/℃(≤5 mH₂O)		±0.02％FS/℃(＞5 mH₂O)
Full temperature coefficient	±0.05％FS/℃(≤5 mH₂O)		±0.05％FS/℃(＞5 mH₂O)
Long term stability	±0.2%FS/year(Max)
